InnoScan Leading the Way in Microarray Imaging

InnoScan – High-Performance Microarray Scanners for Demanding Applications

The InnoScan range is designed for laboratories that require precise, reproducible, and high-throughput microarray imaging. Trusted by researchers worldwide, InnoScan scanners deliver exceptional data quality for applications in genomics, proteomics, diagnostics, and biomarker discovery.

Each system in the InnoScan family is built around a core set of technological advantages:

  • Submicron resolution and high dynamic range for accurate signal detection
  • Dual-laser and multi-wavelength configurations for flexible fluorescence profiling
  • Advanced autofocus and real-time signal monitoring for maximum reliability
  • Open and interoperable formats, compatible with leading analysis tools and pipelines

From low-density research arrays to clinical-grade diagnostics, InnoScan scanners offer the performance and scalability required to meet evolving scientific challenges. Combined with Innopsys’ robust acquisition software and long-term support, the InnoScan platform empowers research teams to generate consistent, publication-quality data — slide after slide.

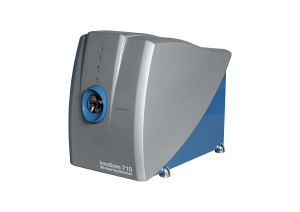

InnoScan 710 – Two Color Microarray Scanner

Please check the Innopsys webpage for InnoScan 710: Microarray scanner – InnoScan 710 – Innopsys

Description

EASE OF USE, SPEED AND IMAGE QUALITY
Characterised by its ease-of-use, speed and image quality, the InnoScan 710 Microarray scanner is the ideal tool for routine microarray reading

Speed
With its patented XY motorisation, the InnoScan 710 is the fastest scanner on the market with adjustable reading speed from 10 to 35 lines per second (capable of scanning slides at 10 μm/pixel in less than 4 minutes).

Reliable and traceable results
With a barcode reader, the InnoScan 710 provides accurate control of acquired images. InnoScan 710 is supplied with a validation slide and associated Mapix software that verifies scanner performance.

Routine use
InnoScan 710 is a low cost, portable scanner capable of reading medium density microarrays at a maximum resolution of 3 µm/pixel.

Key points, technology

Confocal detection

  • Optimize fluorescence detection
  • Assure good focalization all along the scan
  • Less background
  • SNR is increased by 2.5 times

Real-time autofocus

  • Detection idone through a spatial phinhole
  • Follows the slide movement and deformation in real time during the scan
  • Avoid all out-of-focus signal

Automatic barcode reader

  • Reliable and traceable results

All standard microscope slides format

  • Glass
  • Nitrocelluose coated glass
  • Plastic
  • Silicon wafer
  • Gold coated glass

Dynamic range

  • From > 104 to >106
  • Detect the lowest signals avoiding saturation.

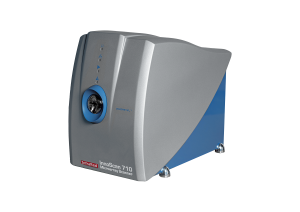

InnoScan 710-ir – infrared microarray scanner

Please check the Innopsys webpage for InnoScan 710-IR: Infrared Microarray scanner -InnoScan 710-IR – Innopsys

Description

EASE OF USE, SPEED AND IMAGE QUALITY
Characterised by its ease-of-use, speed and image quality, InnoScan 710-IR infrared microarray scanner is the ideal tool for routine microarray reading.

Speed
With its patented XY motorisation, the InnoScan 710-IR is the fastest scanner on the market with adjustable reading speed from 10 to 35 lines per second (capable of scanning slides at 10 μm/pixel in less than 4 minutes).

Reliable and traceable results
With a barcode reader, InnoScan 710-IR microarray scanner provides accurate control of acquired images. InnoScan 710-IR is supplied with a validation slide and associated Mapix software that verifies scanner performance.

Routine use
InnoScan 710-IR is a low cost, portable scanner capable of reading medium density microarrays at a maximum resolution of 3 µm/pixel.

Key points, technology

Confocal detection

  • Optimize fluorescence detection
  • Assure good focalization all along the scan
  • Less background
  • SNR is increased by 2.5 times

Real-time autofocus

  • Detection idone through a spatial phinhole
  • Follows the slide movement and deformation in real time during the scan
  • Avoid all out-of-focus signal

Automatic barcode reader

  • Reliable and traceable results

All standard microscope slides format

  • Glass
  • Nitrocelluose coated glass
  • Plastic
  • Silicon wafer
  • Gold coated glass

Dynamic range

  • From > 104 to >106
  • Detect the lowest signals avoiding saturation.

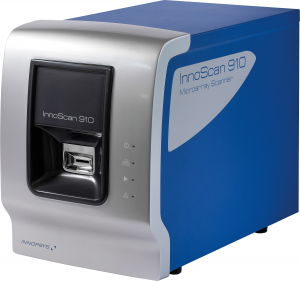

InnoScan 910 Microarray Scanner

Please check the Innopsys webpage for InnoScan 910: InnoScan 910 Microarray Scanner – Innopsys

Description

EASE OF USE, SPEED AND IMAGE QUALITY
Characterised by its ease-of-use, speed and image quality, the InnoScan 910 Microarray scanner is the ideal tool for routine microarray reading

Speed
With its patented XY motorisation, the InnoScan 910 is the fastest scanner on the market with adjustable reading speed from 10 to 35 lines per second (capable of scanning slides at 10 μm/pixel in less than 4 minutes).

Reliable and traceable results
With a barcode reader, the InnoScan 910 provides accurate control of acquired images. InnoScan 910 is supplied with a validation slide and associated Mapix software that verifies scanner performance.

Routine use
InnoScan 910 is a low cost, portable scanner capable of reading medium density microarrays at a maximum resolution of 1 µm/pixel.

Key points, technology

Confocal detection

  • Optimize fluorescence detection
  • Assure good focalization all along the scan
  • Less background
  • SNR is increased by 2.5 times

Real-time autofocus

  • Detection idone through a spatial phinhole
  • Follows the slide movement and deformation in real time during the scan
  • Avoid all out-of-focus signal

Automatic barcode reader

  • Reliable and traceable results

All standard microscope slides format

  • Glass
  • Nitrocelluose coated glass
  • Plastic
  • Silicon wafer
  • Gold coated glass

Dynamic range

  • From > 104 to >106
  • Detect the lowest signals avoiding saturation.

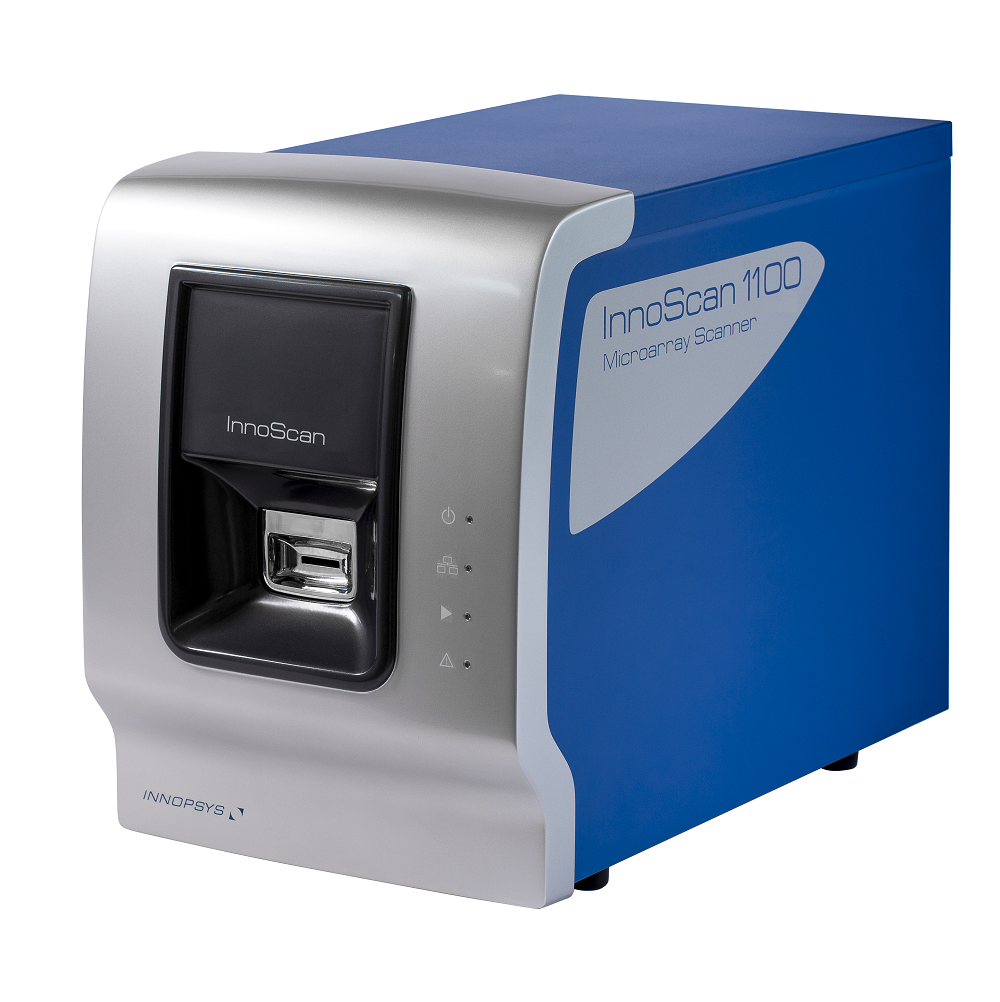

InnoScan 1100 Microarray Scanner  – 3-Color ultra-high resolution scanner

Please check the Innopsys webpage for InnoScan 1100: InnoScan 1100 Microarray Scanner – Innopsys

Multiplexed whole-slide imaging

InnoScan 1100 Microarray Scanner

0.5μm pixel size, equivalent to 20x microscope magnification
High sensitivity : high performance analogical PMTs
3-color simultaneous confocal detection

Easy automation

Real-time autofocus or in-content focus system
24-slide autoloader for high-throughput applications
Automated image acquisition with Mapix software

Reliable and traceable results

Barcode reader
Accurate control of acquired images
InnoScan 1100 Microarray Scanner supplied with a validation slide which verifies scanner performance

Key points, technology

Confocal detection

  • Optimize fluorescence detection
  • Assure good focalization all along the scan
  • Less background
  • SNR is increased by 2.5 times

Real-time autofocus

  • Detection idone through a spatial phinhole
  • Follows the slide movement and deformation in real time during the scan
  • Avoid all out-of-focus signal

Automatic barcode reader

  • Reliable and traceable results

All standard microscope slides format

  • Glass
  • Nitrocelluose coated glass
  • Plastic
  • Silicon wafer
  • Gold coated glass

Dynamic range

  • From > 104 to >106
  • Detect the lowest signals avoiding saturation.
